Example: Stochastic Volatility

Generative model:

\begin{align} \sigma & \sim \text{Exponential}(50) \\ \nu & \sim \text{Exponential}(.1) \\ s_i & \sim \text{Normal}(s_{i-1}, \sigma^{- 2}) \\ r_i & \sim \text{StudentT}(\nu, 0, \exp(s_i)) \end{align}

This example is from PyMC3 [1], which itself is adapted from the original experiment from [2]. A discussion about translating this in Pyro appears in [3].

We take this example to illustrate how to use the functional interface hmc. However, we recommend readers to use MCMC class as in other examples because it is more stable and has more features supported.


  1. Stochastic Volatility Model, https://docs.pymc.io/notebooks/stochastic_volatility.html

  2. The No-U-Turn Sampler: Adaptively Setting Path Lengths in Hamiltonian Monte Carlo, https://arxiv.org/pdf/1111.4246.pdf

  3. Pyro forum discussion, https://forum.pyro.ai/t/problems-transforming-a-pymc3-model-to-pyro-mcmc/208/14

import argparse
import os

import matplotlib
import matplotlib.dates as mdates
import matplotlib.pyplot as plt

import jax.numpy as jnp
import jax.random as random

import numpyro
import numpyro.distributions as dist
from numpyro.examples.datasets import SP500, load_dataset
from numpyro.infer.hmc import hmc
from numpyro.infer.util import initialize_model
from numpyro.util import fori_collect

matplotlib.use("Agg")  # noqa: E402

def model(returns):
    step_size = numpyro.sample("sigma", dist.Exponential(50.0))
    s = numpyro.sample(
        "s", dist.GaussianRandomWalk(scale=step_size, num_steps=jnp.shape(returns)[0])
    nu = numpyro.sample("nu", dist.Exponential(0.1))
    return numpyro.sample(
        "r", dist.StudentT(df=nu, loc=0.0, scale=jnp.exp(s)), obs=returns

def print_results(posterior, dates):
    def _print_row(values, row_name=""):
        quantiles = jnp.array([0.2, 0.4, 0.5, 0.6, 0.8])
        row_name_fmt = "{:>8}"
        header_format = row_name_fmt + "{:>12}" * 5
        row_format = row_name_fmt + "{:>12.3f}" * 5
        columns = ["(p{})".format(int(q * 100)) for q in quantiles]
        q_values = jnp.quantile(values, quantiles, axis=0)
        print(header_format.format("", *columns))
        print(row_format.format(row_name, *q_values))

    print("=" * 20, "sigma", "=" * 20)
    print("=" * 20, "nu", "=" * 20)
    print("=" * 20, "volatility", "=" * 20)
    for i in range(0, len(dates), 180):
        _print_row(jnp.exp(posterior["s"][:, i]), dates[i])

def main(args):
    _, fetch = load_dataset(SP500, shuffle=False)
    dates, returns = fetch()
    init_rng_key, sample_rng_key = random.split(random.PRNGKey(args.rng_seed))
    model_info = initialize_model(init_rng_key, model, model_args=(returns,))
    init_kernel, sample_kernel = hmc(model_info.potential_fn, algo="NUTS")
    hmc_state = init_kernel(
        model_info.param_info, args.num_warmup, rng_key=sample_rng_key
    hmc_states = fori_collect(
        args.num_warmup + args.num_samples,
        transform=lambda hmc_state: model_info.postprocess_fn(hmc_state.z),
        progbar=False if "NUMPYRO_SPHINXBUILD" in os.environ else True,
    print_results(hmc_states, dates)

    fig, ax = plt.subplots(figsize=(8, 6), constrained_layout=True)
    dates = mdates.num2date(mdates.datestr2num(dates))
    ax.plot(dates, returns, lw=0.5)
    # format the ticks

    ax.plot(dates, jnp.exp(hmc_states["s"].T), "r", alpha=0.01)
    legend = ax.legend(["returns", "volatility"], loc="upper right")

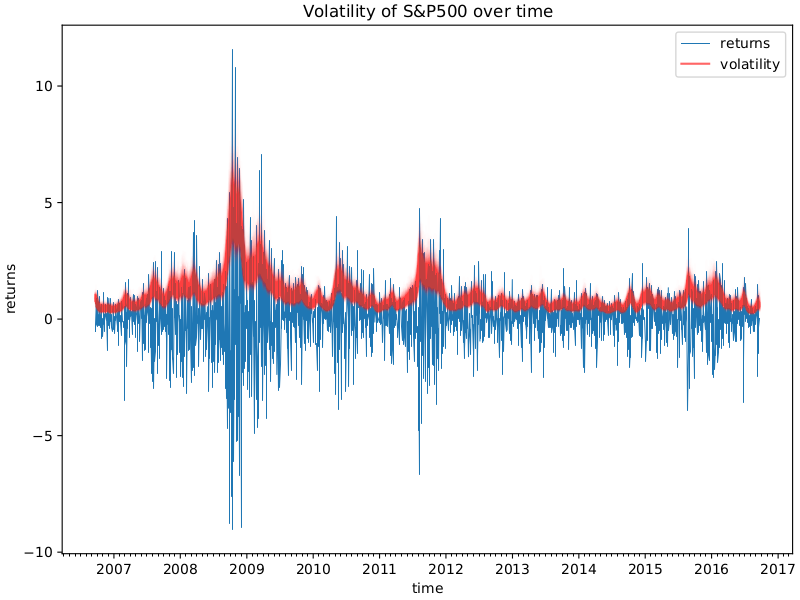

    ax.set(xlabel="time", ylabel="returns", title="Volatility of S&P500 over time")


if __name__ == "__main__":
    assert numpyro.__version__.startswith("0.15.0")
    parser = argparse.ArgumentParser(description="Stochastic Volatility Model")
    parser.add_argument("-n", "--num-samples", nargs="?", default=600, type=int)
    parser.add_argument("--num-warmup", nargs="?", default=600, type=int)
    parser.add_argument("--device", default="cpu", type=str, help='use "cpu" or "gpu".')
        "--rng_seed", default=21, type=int, help="random number generator seed"
    args = parser.parse_args()
