# Example: Deep Markov Model inferred using SteinVI¶

In this example we infer a deep Markov model (DMM) using SteinVI for generating music (chorales by Johan Sebastian Bach).

The model DMM based on reference [1][2] and the Pyro DMM example: https://pyro.ai/examples/dmm.html.

Reference:

1. Pathwise Derivatives for Multivariate Distributions Martin Jankowiak and Theofanis Karaletsos (2019)

2. Structured Inference Networks for Nonlinear State Space Models [arXiv:1609.09869]

Rahul G. Krishnan, Uri Shalit and David Sontag (2016)

```import argparse

import numpy as np

import jax
from jax import nn, numpy as jnp, random

import numpyro
from numpyro.contrib.einstein import SteinVI
from numpyro.contrib.einstein.mixture_guide_predictive import MixtureGuidePredictive
from numpyro.contrib.einstein.stein_kernels import RBFKernel
import numpyro.distributions as dist
from numpyro.optim import optax_to_numpyro

def _reverse_single(p, length):
new = jnp.zeros_like(p)
reverse = jnp.roll(p[::-1], length, axis=0)
return new.at[:].set(reverse)

lengths, seqs = fetch(0)

def emitter(x, params):
"""Parameterizes the bernoulli observation likelihood `p(x_t | z_t)`"""
l1 = nn.relu(jnp.matmul(x, params["l1"]))
l2 = nn.relu(jnp.matmul(l1, params["l2"]))
return jnp.matmul(l2, params["l3"])

def transition(x, params):
"""Parameterizes the gaussian latent transition probability `p(z_t | z_{t-1})`
See section 5 in [1].

**Reference:**
1. Structured Inference Networks for Nonlinear State Space Models [arXiv:1609.09869]
Rahul G. Krishnan, Uri Shalit and David Sontag (2016)
"""

def _gate(x, params):
l1 = nn.relu(jnp.matmul(x, params["l1"]))
return nn.sigmoid(jnp.matmul(l1, params["l2"]))

def _shared(x, params):
l1 = nn.relu(jnp.matmul(x, params["l1"]))
return jnp.matmul(l1, params["l2"])

def _mean(x, params):
return jnp.matmul(x, params["l1"])

def _std(x, params):
l1 = jnp.matmul(nn.relu(x), params["l1"])
return nn.softplus(l1)

gt = _gate(x, params["gate"])
ht = _shared(x, params["shared"])
loc = (1 - gt) * _mean(x, params["mean"]) + gt * ht
std = _std(ht, params["std"])
return loc, std

def combiner(x, params):
mean = jnp.matmul(x, params["mean"])
std = nn.softplus(jnp.matmul(x, params["std"]))
return mean, std

def gru(xs, lengths, init_hidden, params):
"""RNN with GRU. Based on https://github.com/google/jax/pull/2298"""

def apply_fun_single(state, inputs):
i, x = inputs
inp_update = jnp.matmul(x, params["update_in"])
hidden_update = jnp.dot(state, params["update_weight"])
update_gate = nn.sigmoid(inp_update + hidden_update)
reset_gate = nn.sigmoid(
jnp.matmul(x, params["reset_in"]) + jnp.dot(state, params["reset_weight"])
)
output_gate = update_gate * state + (1 - update_gate) * jnp.tanh(
jnp.matmul(x, params["out_in"])
+ jnp.dot(reset_gate * state, params["out_weight"])
)
hidden = jnp.where((i < lengths)[:, None], output_gate, jnp.zeros_like(state))
return hidden, hidden

return jax.lax.scan(apply_fun_single, init_hidden, (jnp.arange(xs.shape[0]), xs))

def _normal_init(*shape):
return lambda rng_key: dist.Normal(scale=0.1).sample(rng_key, shape)

def model(
seqs,
seqs_rev,
lengths,
*,
subsample_size=77,
latent_dim=32,
emission_dim=100,
transition_dim=200,
data_dim=88,
gru_dim=150,
annealing_factor=1.0,
predict=False,
):
max_seq_length = seqs.shape[1]

emitter_params = {
"l1": numpyro.param("emitter_l1", _normal_init(latent_dim, emission_dim)),
"l2": numpyro.param("emitter_l2", _normal_init(emission_dim, emission_dim)),
"l3": numpyro.param("emitter_l3", _normal_init(emission_dim, data_dim)),
}

trans_params = {
"gate": {
"l1": numpyro.param("gate_l1", _normal_init(latent_dim, transition_dim)),
"l2": numpyro.param("gate_l2", _normal_init(transition_dim, latent_dim)),
},
"shared": {
"l1": numpyro.param("shared_l1", _normal_init(latent_dim, transition_dim)),
"l2": numpyro.param("shared_l2", _normal_init(transition_dim, latent_dim)),
},
"mean": {"l1": numpyro.param("mean_l1", _normal_init(latent_dim, latent_dim))},
"std": {"l1": numpyro.param("std_l1", _normal_init(latent_dim, latent_dim))},
}

z0 = numpyro.param(
"z0", lambda rng_key: dist.Normal(0, 1.0).sample(rng_key, (latent_dim,))
)
z0 = jnp.broadcast_to(z0, (subsample_size, 1, latent_dim))
with numpyro.plate(
"data", seqs.shape[0], subsample_size=subsample_size, dim=-1
) as idx:
if subsample_size == seqs.shape[0]:
seqs_batch = seqs
lengths_batch = lengths
else:
seqs_batch = seqs[idx]
lengths_batch = lengths[idx]

jnp.expand_dims(jnp.arange(max_seq_length), axis=0), subsample_size, axis=0
) < jnp.expand_dims(lengths_batch, axis=-1)
# NB: Mask is to avoid scoring 'z' using distribution at this point
z = numpyro.sample(
"z",
dist.Normal(0.0, jnp.ones((max_seq_length, latent_dim)))
.to_event(2),
)

z_shift = jnp.concatenate([z0, z[:, :-1, :]], axis=-2)
z_loc, z_scale = transition(z_shift, params=trans_params)

with numpyro.handlers.scale(scale=annealing_factor):
# Actually score 'z'
numpyro.sample(
"z_aux",
dist.Normal(z_loc, z_scale)
.to_event(2),
obs=z,
)

emission_probs = emitter(z, params=emitter_params)
if predict:
tunes = None
else:
tunes = seqs_batch
numpyro.sample(
"tunes",
dist.Bernoulli(logits=emission_probs)
.to_event(2),
obs=tunes,
)

def guide(
seqs,
seqs_rev,
lengths,
*,
subsample_size=77,
latent_dim=32,
emission_dim=100,
transition_dim=200,
data_dim=88,
gru_dim=150,
annealing_factor=1.0,
predict=False,
):
max_seq_length = seqs.shape[1]
seqs_rev = jnp.transpose(seqs_rev, axes=(1, 0, 2))

combiner_params = {
"mean": numpyro.param("combiner_mean", _normal_init(gru_dim, latent_dim)),
"std": numpyro.param("combiner_std", _normal_init(gru_dim, latent_dim)),
}

gru_params = {
"update_in": numpyro.param("update_in", _normal_init(data_dim, gru_dim)),
"update_weight": numpyro.param("update_weight", _normal_init(gru_dim, gru_dim)),
"reset_in": numpyro.param("reset_in", _normal_init(data_dim, gru_dim)),
"reset_weight": numpyro.param("reset_weight", _normal_init(gru_dim, gru_dim)),
"out_in": numpyro.param("out_in", _normal_init(data_dim, gru_dim)),
"out_weight": numpyro.param("out_weight", _normal_init(gru_dim, gru_dim)),
}

with numpyro.plate(
"data", seqs.shape[0], subsample_size=subsample_size, dim=-1
) as idx:
if subsample_size == seqs.shape[0]:
seqs_rev_batch = seqs_rev
lengths_batch = lengths
else:
seqs_rev_batch = seqs_rev[:, idx, :]
lengths_batch = lengths[idx]

jnp.expand_dims(jnp.arange(max_seq_length), axis=0), subsample_size, axis=0
) < jnp.expand_dims(lengths_batch, axis=-1)

h0 = numpyro.param(
"h0",
lambda rng_key: dist.Normal(0.0, 1).sample(rng_key, (1, gru_dim)),
)
_, hs = gru(seqs_rev_batch, lengths_batch, h0, gru_params)
hs = _reverse_padded(jnp.transpose(hs, axes=(1, 0, 2)), lengths_batch)
with numpyro.handlers.scale(scale=annealing_factor):
numpyro.sample(
"z",
dist.Normal(*combiner(hs, combiner_params))
.to_event(2),
)

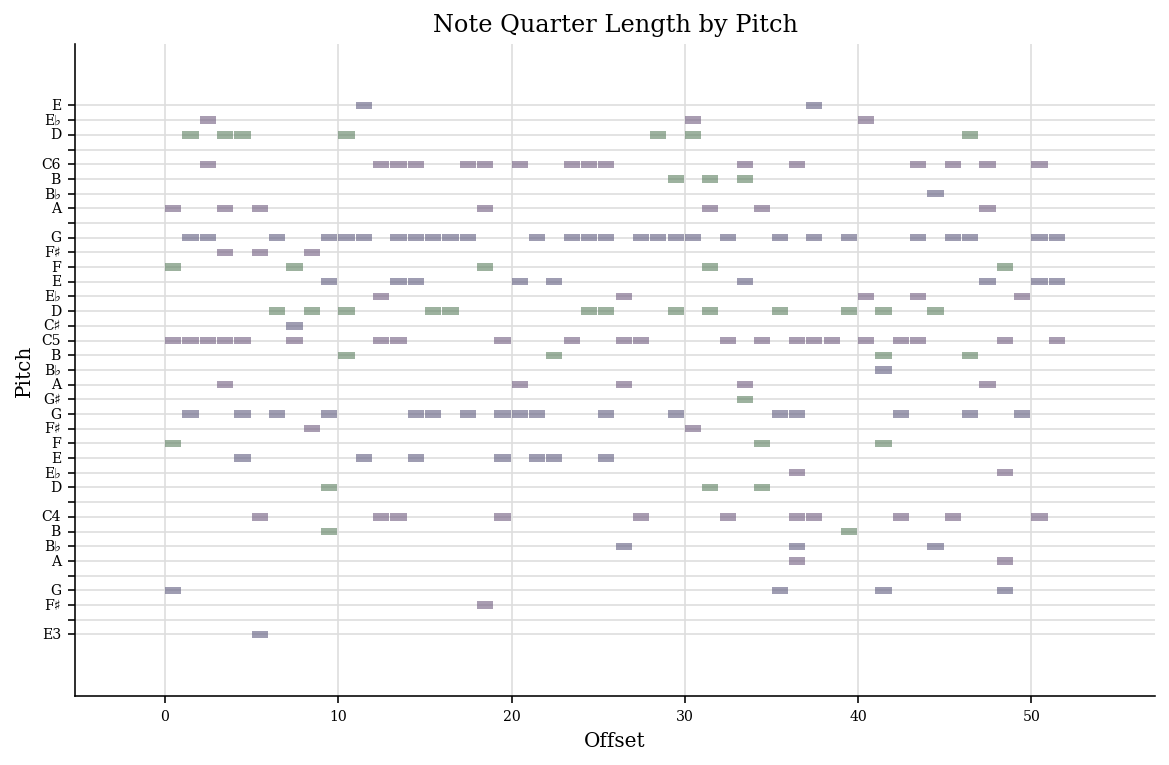

def vis_tune(i, tunes, lengths, name="stein_dmm.pdf"):
tune = tunes[i, : lengths[i]]
try:
from music21.chord import Chord
from music21.pitch import Pitch
from music21.stream import Stream

stream = Stream()
for chord in tune:
stream.append(
Chord(list(Pitch(pitch) for pitch in (np.arange(88) + 21)[chord > 0]))
)
plot = stream.plot(doneAction=None)
plot.write(name)
except ModuleNotFoundError:
import matplotlib.pyplot as plt

plt.imshow(tune.T, cmap="Greys")
plt.ylabel("Pitch")
plt.xlabel("Offset")
plt.savefig(name)

def main(args):
inf_key, pred_key = random.split(random.PRNGKey(seed=args.rng_seed), 2)

steinvi = SteinVI(
model,
guide,
RBFKernel(),
num_elbo_particles=args.num_elbo_particles,
num_stein_particles=args.num_stein_particles,
)

results = steinvi.run(
inf_key,
args.max_iter,
seqs,
rev_seqs,
lengths,
gru_dim=args.gru_dim,
subsample_size=args.subsample_size,
)
pred = MixtureGuidePredictive(
model,
guide,
params=results.params,
num_samples=1,
guide_sites=steinvi.guide_sites,
)
pred_notes = pred(
pred_key, seqs, rev_seqs, lengths, subsample_size=seqs.shape[0], predict=True
)["tunes"]

vis_tune(0, pred_notes[0], lengths)

if __name__ == "__main__":
parser = argparse.ArgumentParser()
